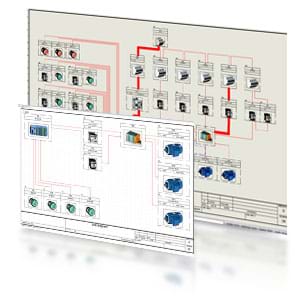

SOLIDWORKS Electrical single line schematic electrical system planning tool allows for faster development with greater accuracy with simple pictorial representation of electrical components and interconnectors for complex embedded electrical systems.
Elements include:
-
Collaboration tool
-
System-level blue print of electrical system
-
Isometric or flat symbols representing components
-
Single wire can also represent complex interconnect or wire harness
